Specifications
| DN (mm) | 100 |
| Flange (drilling) | PN10/16 |
| Max Operating Pressure | 10 Bar |
| Rubber type | NBR rubber |
| Material | Stainless Steel AISI 316 |
| Design Standard(s) | Designed according to EN12050-4 |
| Face-to-face Standard | Face-to-face dimension according to EN 558 Table 2 Basic Series 48 |
| Working temperature of rubber | Max. 70°C |
| Connection | Flanged |
| Material | Stainless Steel AISI 316 |

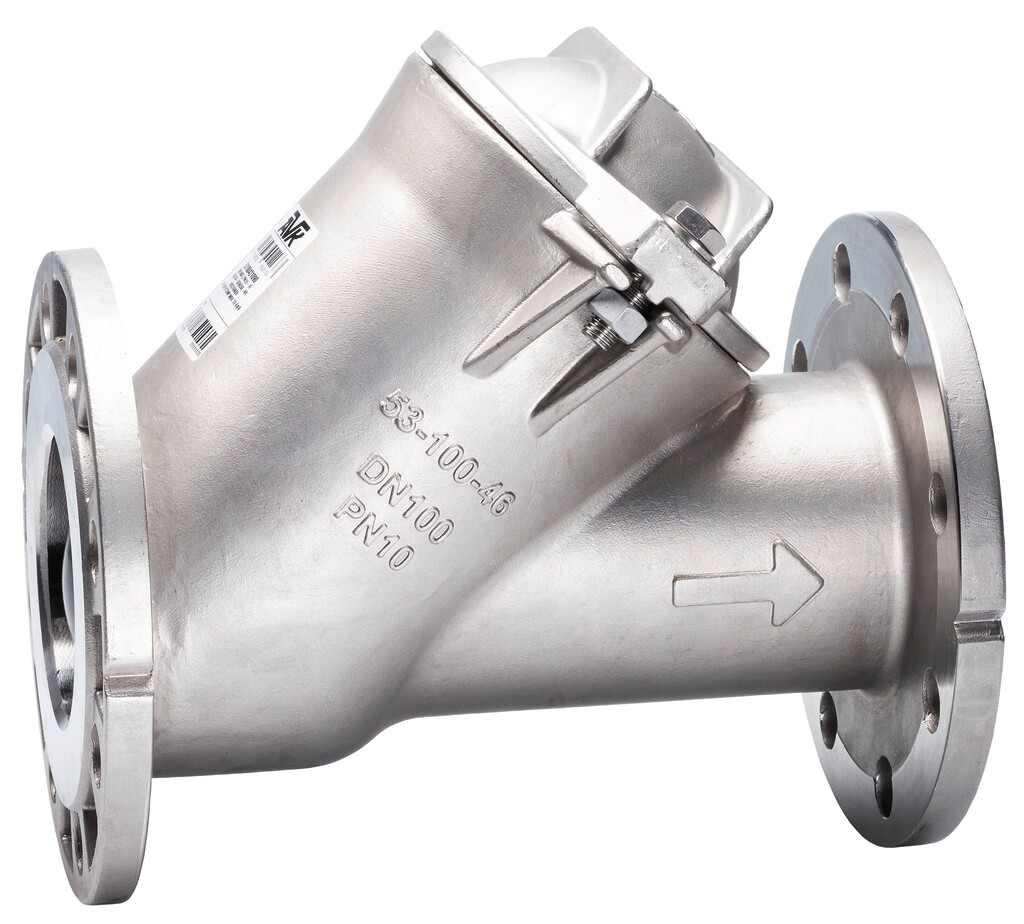

| Description | BALL CHECK VALVE, NBR, FLANGED, SS, DN100 |
