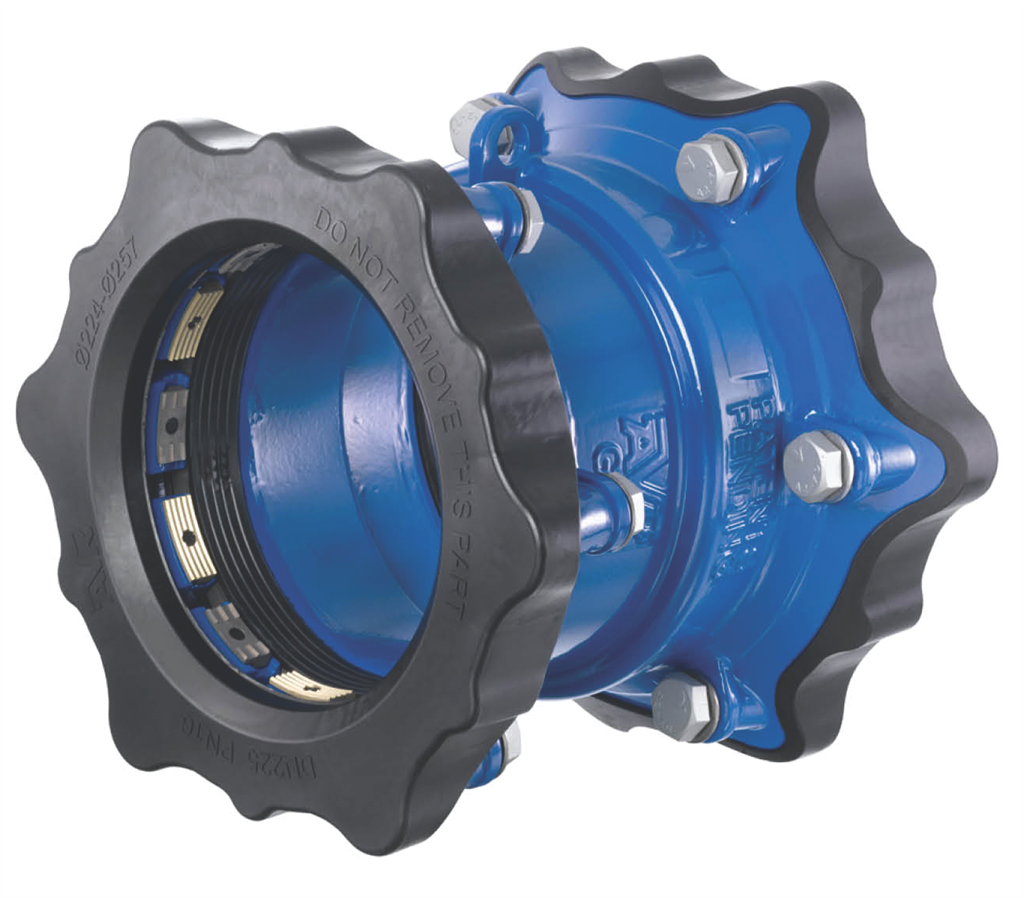

TENSILE COUPLING, 082/106-104/133
TENSILE COUPLING, 082/106-104/133
TENSILE COUPLING, 082/106-104/133
TENSILE COUPLING, 082/106-104/133
TENSILE COUPLING, 082/106-104/133
TENSILE COUPLING, 082/106-104/133

TENSILE COUPLING, 082/106-104/133

Item No. 632106133006
Price on request
Specifications
DN (mm) 80
Max Operating Pressure 16 Bar
Approval(s) Approved according to KIWA Certificate K 66561/02 and Belgaqua approved material
Rubber type EPDM drinking water approved
Material Ductile iron
Design Standard(s) Designed according to EN14525
Working temperature of rubber -20°C to max. 70°C
Connection Supa Maxi™ Coupling
Material Ductile iron

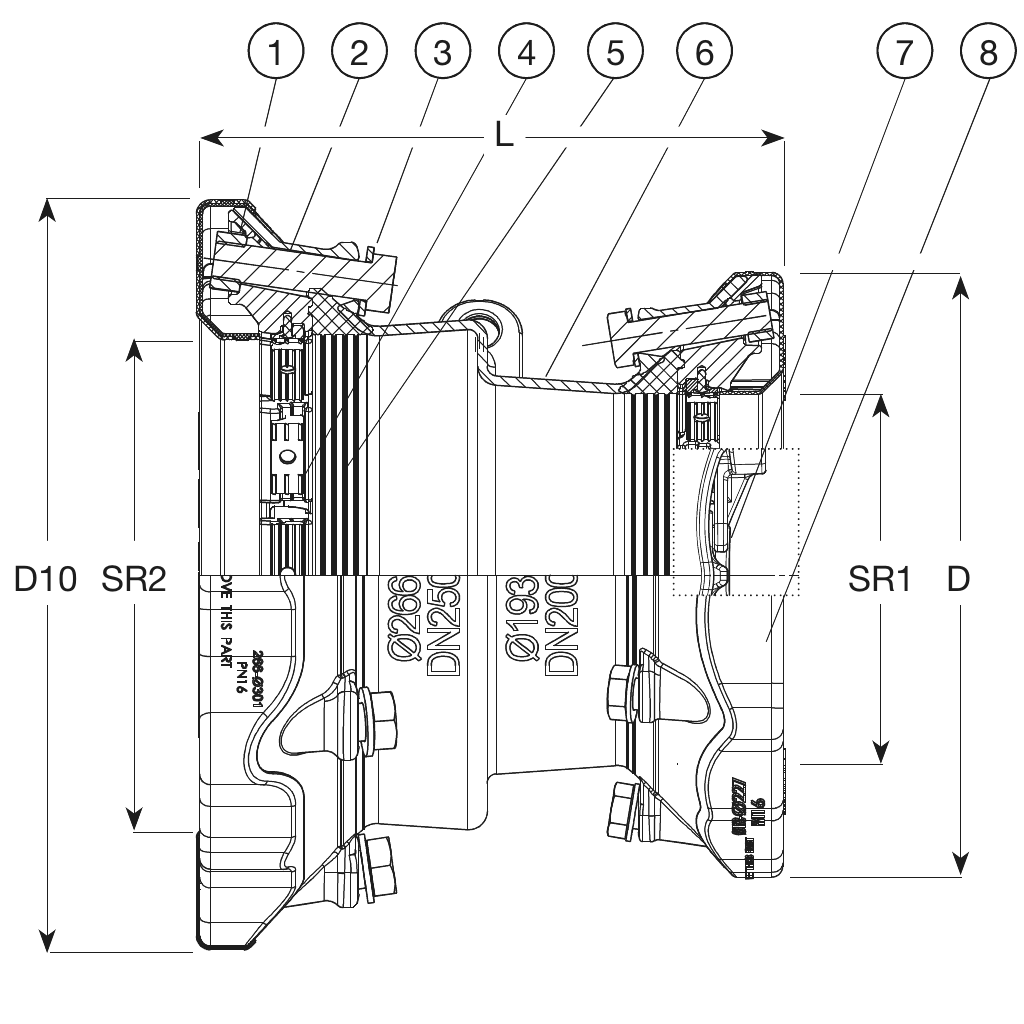

D (mm) 235
D10 (mm) 268
DN/DN 80 - 100
Range (mm) 82 - 106
Seal range (SR2/mm) 104 - 133
T (mm) 82 - 106
T2 (mm) 104 - 133
W (mm) 268
Description TENSILE COUPLING, 082/106-104/133
Attachments
632-00-001_AVK014_FRB
632-00-001_AVK014_NLB
Approvisionnement en eau_brochure_2020_FR_LQ
AVK BE_Koppelingen en flensadapters brochure
AVK BE_Raccords et manchons brochure
CONSEIL QUEL RACCORD CHOISIR
FlyerSupa Maxi BEFR
FlyerSupa Maxi BENL
MI_631_632_633_634_635_BE(NLFR)
Tips koppeling kiezen
Watervoorziening_brochure_2020-LQ
