TENSILE FLANGE ADAPTER, 104/133-DN80
TENSILE FLANGE ADAPTER, 104/133-DN80
TENSILE FLANGE ADAPTER, 104/133-DN80
TENSILE FLANGE ADAPTER, 104/133-DN80
TENSILE FLANGE ADAPTER, 104/133-DN80
TENSILE FLANGE ADAPTER, 104/133-DN80

TENSILE FLANGE ADAPTER, 104/133-DN80

Item No. 63313301006
Price on request
Specifications
DN (mm) 80

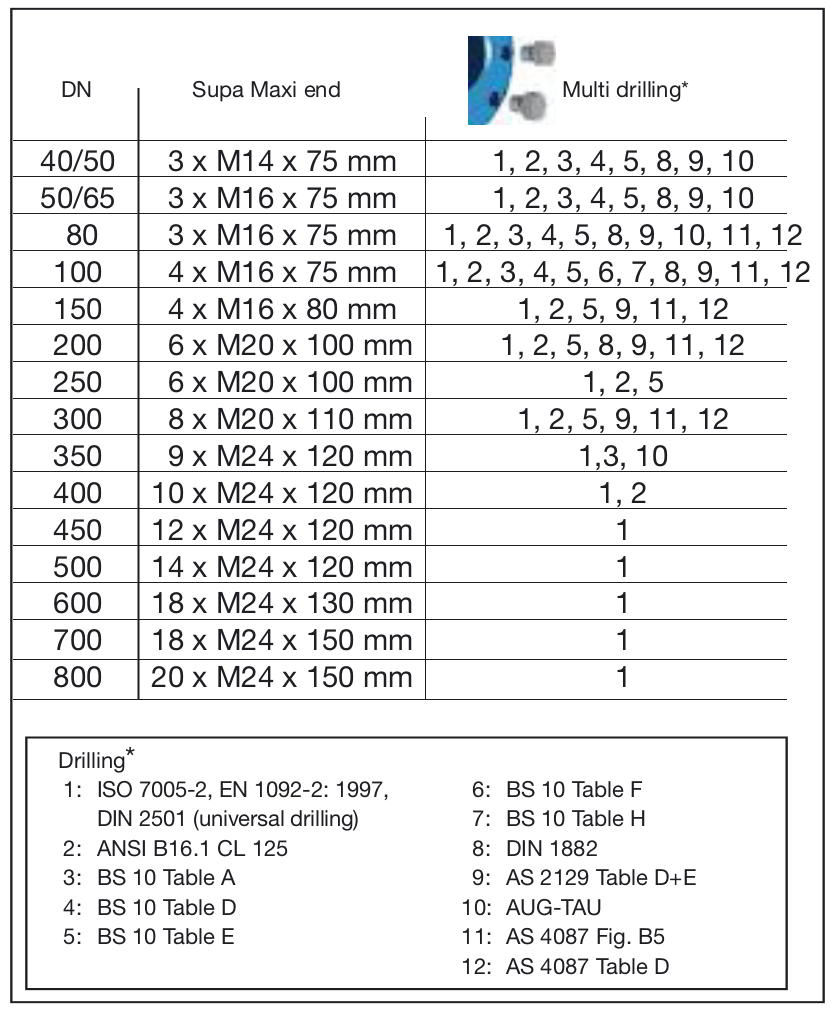

Flange (drilling) 10/16
Max Operating Pressure 16 Bar
Approval(s) Approved according to KIWA Certificate K 66561/02 and Belgaqua approved material
Rubber type EPDM drinking water approved
Material Ductile iron
Design Standard(s) Designed according to EN14525
Working temperature of rubber -20°C to max. 70°C
Connection Supa Maxi™ Coupling
Material Ductile iron
D (mm) 268
DN (mm) 80
Flange (DN mm) 80
Flange (DN mm) 80
T (mm) 104 - 133
W (mm) 268
Description TENSILE FLANGE ADAPTER, 104/133-DN80
Attachments
633-00-001_AVK014_FRB
633-00-001_AVK014_NLB
Approvisionnement en eau_brochure_2020_FR_LQ
AVK BE_Koppelingen en flensadapters brochure
AVK BE_Raccords et manchons brochure
CONSEIL QUEL RACCORD CHOISIR
FlyerSupa Maxi BEFR
FlyerSupa Maxi BENL
MI_631_632_633_634_635_BE(NLFR)
supa-maxi_mi_rev_u_dn50-600_245158_new
Tips koppeling kiezen
Watervoorziening_brochure_2020-LQ
