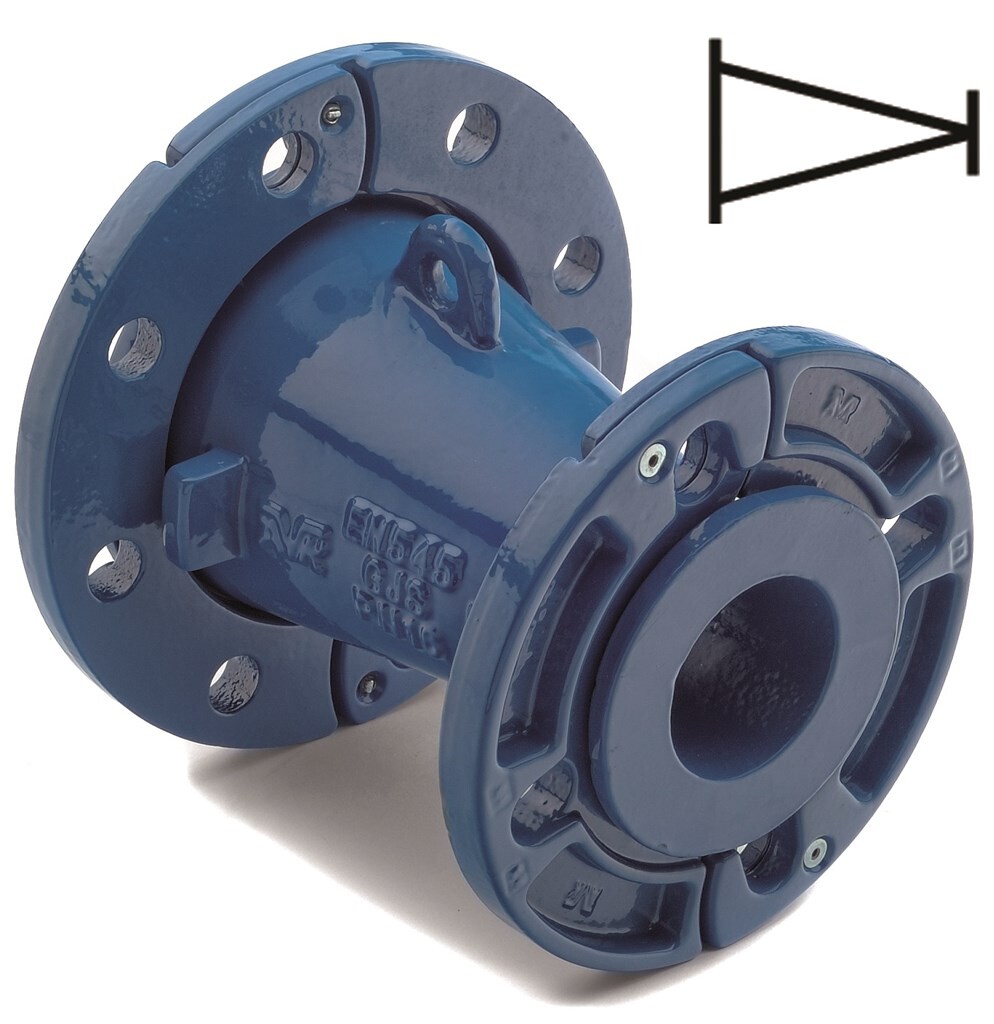

FITTING, REDUCTION, LOOSE FLANGE, DN100-80

Item No. 712010122201

Compare product

Specifications

DN (mm)	100
Flange (drilling)	PN10/16
Approval(s)	Belgaqua approved material
Material	Ductile iron
Design Standard(s)	Designed according to EN545
Working temperature of rubber	Max. 70°C
Connection	Mobile Flanges
Material	Ductile iron
Dd1 (mm)	80
Description	FITTING, REDUCTION, LOOSE FLANGE, DN100-80
