Specifications
| DN (mm) | 80 |
| Flange (drilling) | PN10/16 |
| Max Operating Pressure | 16 Bar |
| Approval(s) | Belgaqua approved material |
| Material | Ductile iron |
| Design Standard(s) | Designed according to EN545 |
| Working temperature of rubber | Max. 70°C |
| Connection | Mobile Flanges |
| Material | Ductile iron |

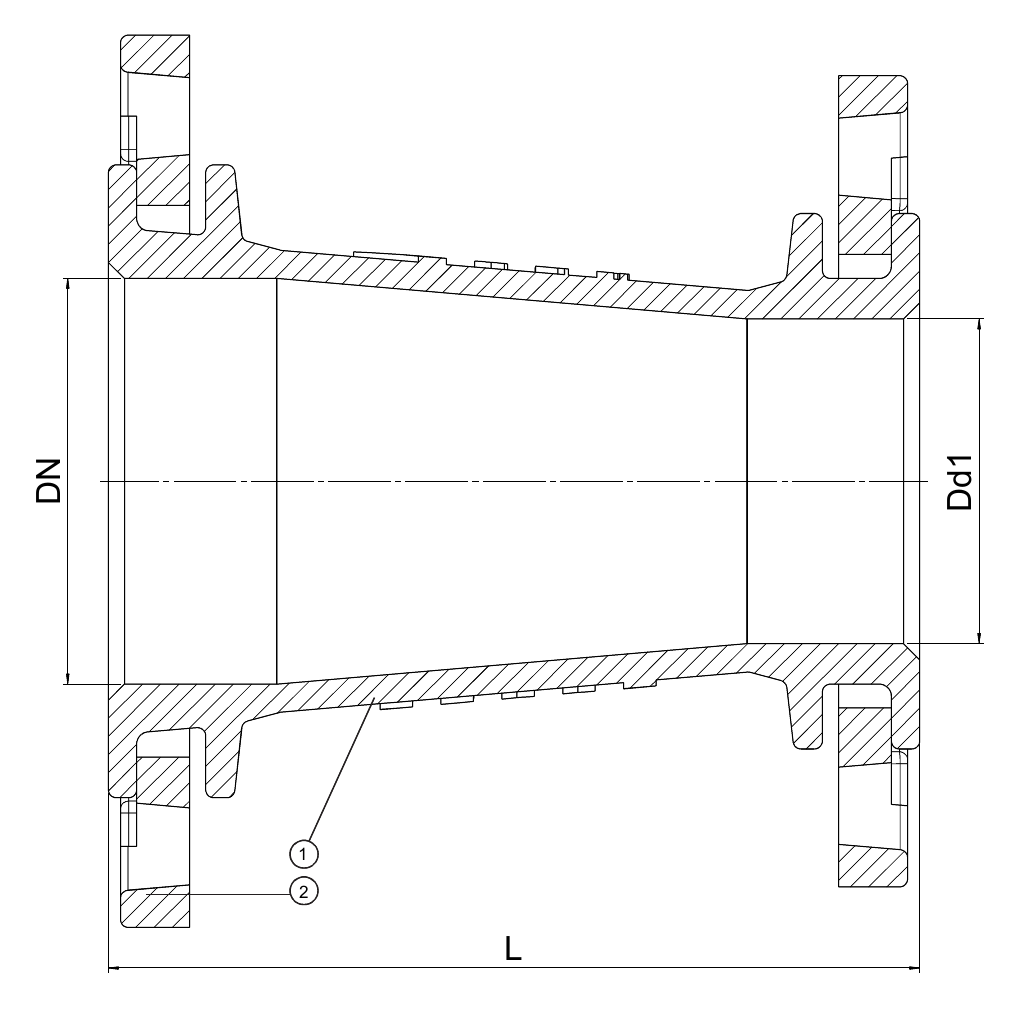

| Dd1 (mm) | 50 |

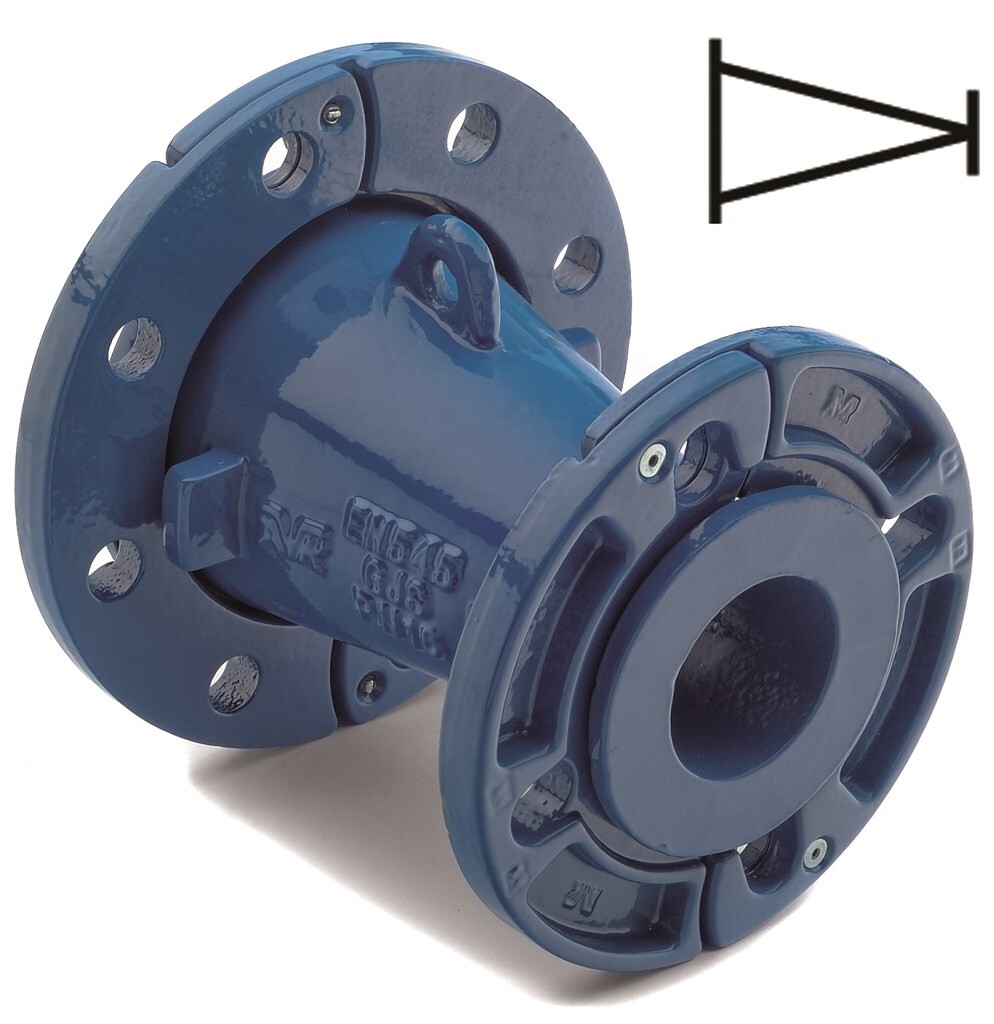

| Description | FITTING, REDUCTION, LOOSE FLANGE, DN80-50 |
