Specifications
| DN (mm) | 200 |
| Flange (drilling) | PN10 |
| Max Operating Pressure | 10 Bar |
| Approval(s) | Belgaqua approved material |
| Material | Ductile iron |
| Design Standard(s) | Designed according to EN545 |
| Working temperature of rubber | Max. 70°C |
| Connection | Mobile Flanges |
| Material | Ductile iron |
| DN2 (mm) | 100 |

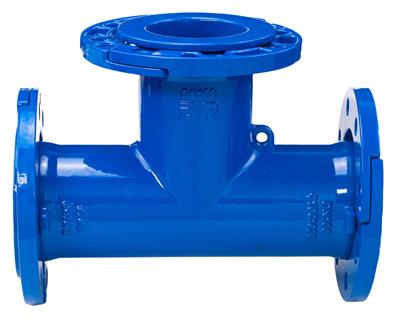

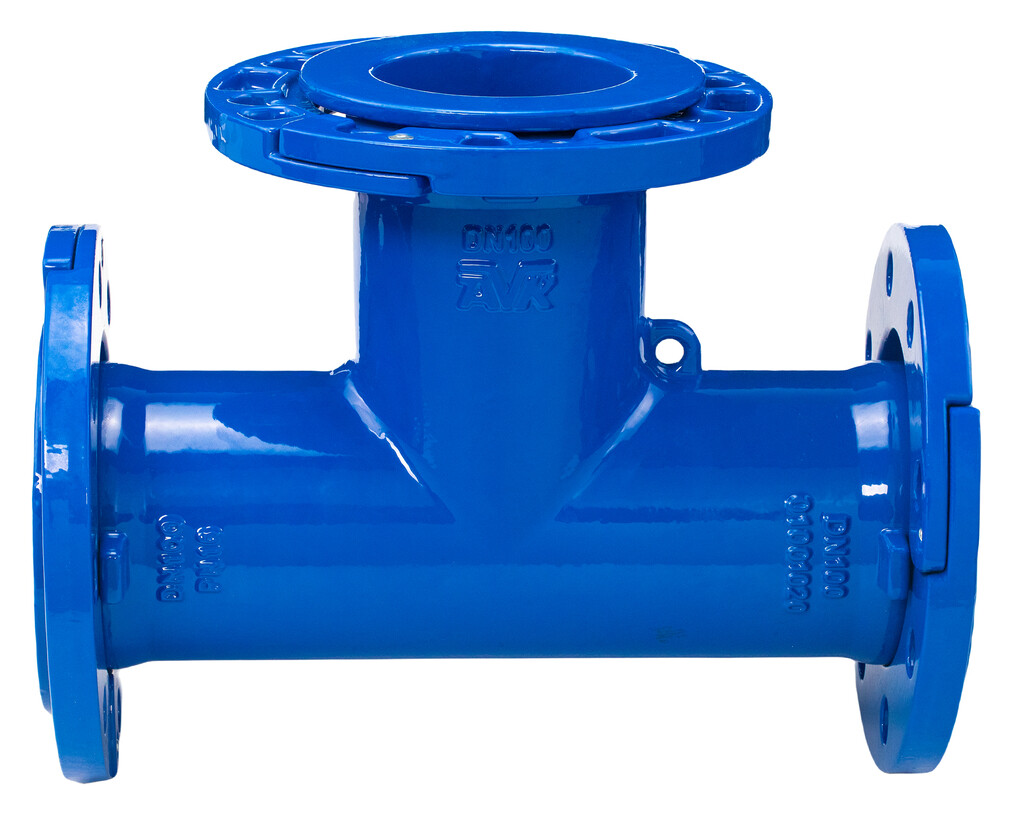

| Description | FITTING, T-PIECE, LOOSE FLANGE, DN200-100 |
