Specifications
| DN (mm) | 80 |
| Max Operating Pressure | 16 Bar |
| Approval(s) | Belgaqua approved material |
| Rubber type | EPDM drinking water approved |
| Closing Direction | Clockwise to Close |
| Material | Ductile iron |
| Design Standard(s) | Designed according to EN1074 1-2 and EN1171 |
| Pressure Test(s) | Seat: 1.1 x PN (in bar), Body: 1.5 x PN (in bar). Operation torque test. Hydraulic test according to EN 1074-1 and 2 / EN 12266 |
| Working temperature of rubber | Max. 70°C |
| Connection | Socket Ends |
| Material | Ductile iron |

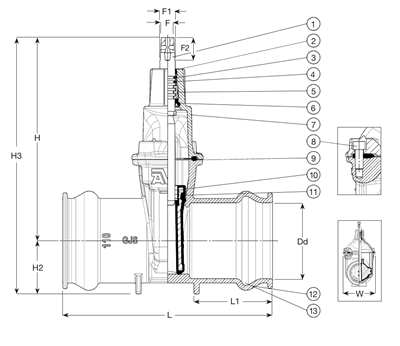

| Dd (mm) | 90 |
| H2 (mm) | 68 |
| L1 (mm) | 112 |
| L2 (mm) | 85 |
| W (mm) | 173 |
| Description | GATE VALVE, EPDM, PVC SOCKET ENDS, DN80 |
