Specifications
| DN (mm) | 65 |
| Flange (drilling) | PN10/16 |
| Max Operating Pressure | 16 Bar |
| Approval(s) | Belgaqua approved material |
| Rubber type | NBR rubber |
| Closing Direction | Clockwise to Close |
| Material | Ductile iron |
| Design Standard(s) | Designed according to EN1074 1-2 and EN1171 |
| Face-to-face Standard | Face-to-face dimension according to EN 558 Table 2 Basic Series 14 |
| Pressure Test(s) | Seat: 1.1 x PN (in bar), Body: 1.5 x PN (in bar). Operation torque test. |
| Working temperature of rubber | Max. 70°C |
| Connection | Flanged |
| Material | Ductile iron |
| W (mm) | 185 |

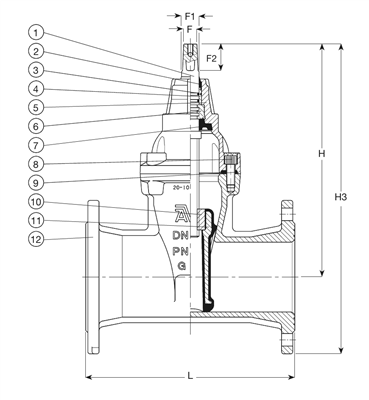

| Description | GATE VALVE, NBR , FLANGED, F5, DN65 |
