Specifications
| DN (mm) | 150 |
| Max Operating Pressure | 16 Bar |
| Approval(s) | Approved according to KIWA Certificate K 66561/02 and Belgaqua approved material |
| Rubber type | EPDM drinking water approved |
| Material | Ductile iron |
| Design Standard(s) | Designed according to EN14525 |
| Working temperature of rubber | -20°C to max. 70°C |
| Connection | Supa Maxi™ Coupling |
| Material | Ductile iron |

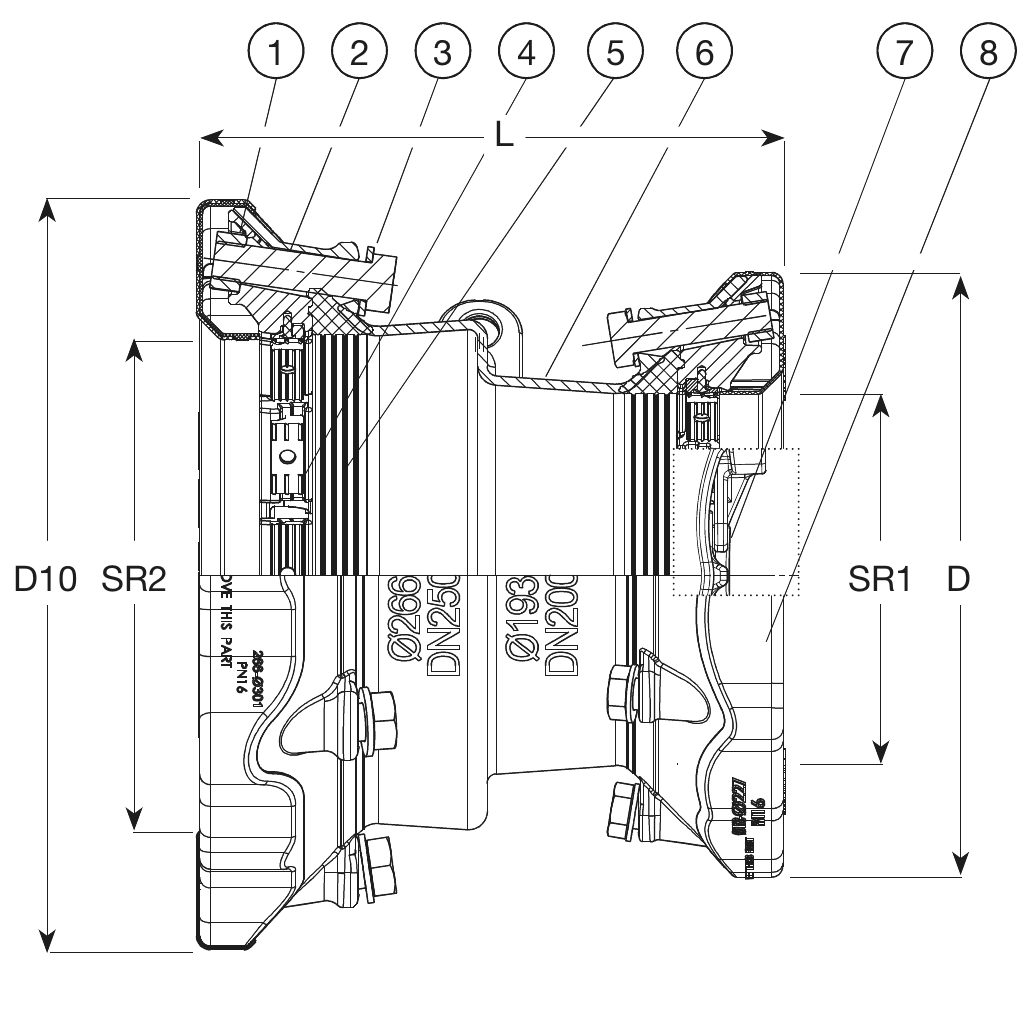

| D (mm) | 340 |
| D10 (mm) | 437 |
| DN/DN | 150 - 225 |
| Range (mm) | 159 - 188 |
| Seal range (SR2/mm) | 224 - 257 |
| T (mm) | 159 - 188 |
| T2 (mm) | 224 - 257 |
| W (mm) | 437 |

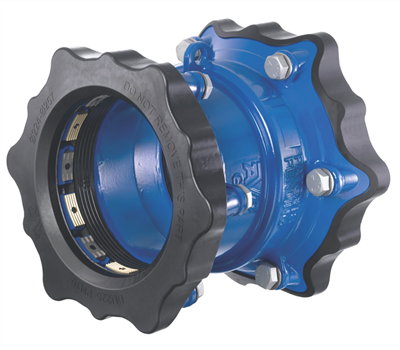

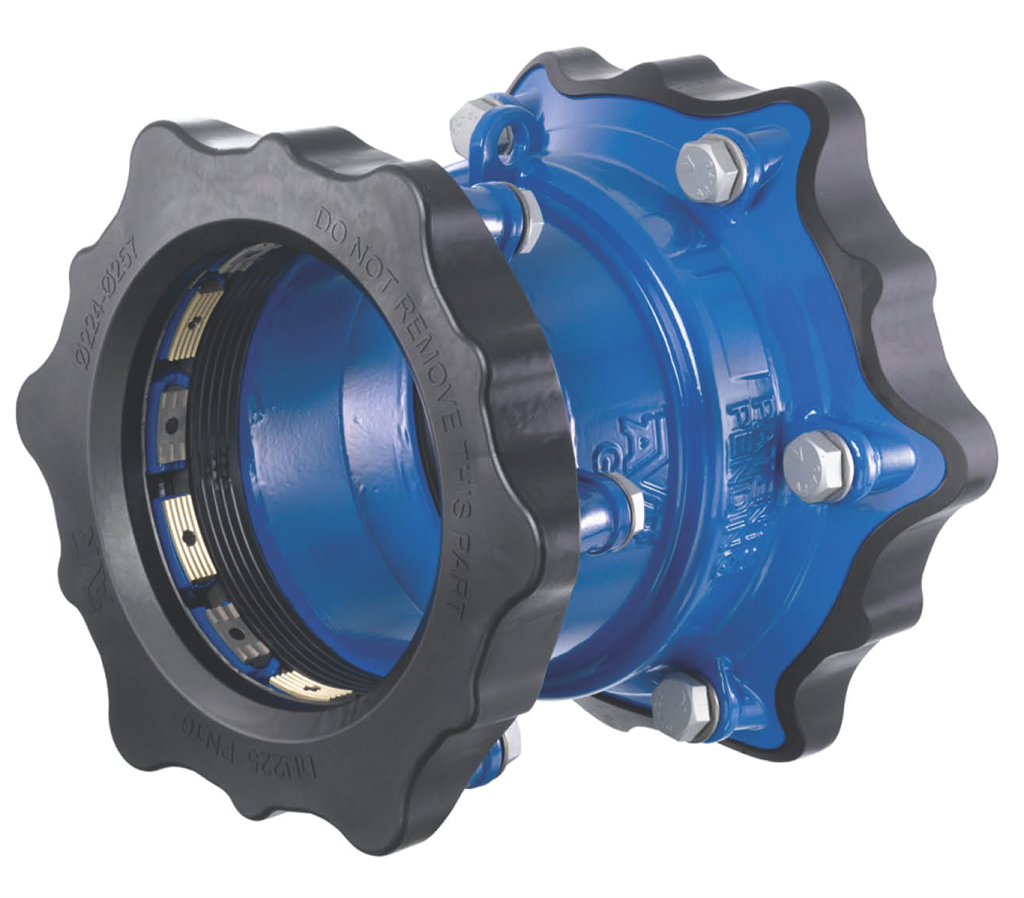

| Description | TENSILE COUPLING, 159/188-224/257 |
Attachments
TENSILE COUPLING, 082/106-104/133
Item No.
632106133006
SUPPORT BUSH, PE PIPES SDR17, PE160
Item No.
0516073000
SUPPORT BUSH, PE PIPES SDR11, PE125
Item No.
0512574000
SUPPORT BUSH, PE PIPES SDR17, PE180
Item No.
0518073000
Price on Request
