Specifications
| DN (mm) | 200 |

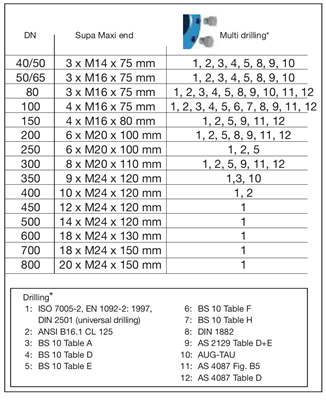

| Flange (drilling) | 10/16 |
| Max Operating Pressure | 16 Bar |
| Approval(s) | Approved according to KIWA Certificate K 66561/02 and Belgaqua approved material |
| Rubber type | EPDM drinking water approved |
| Material | Ductile iron |
| Design Standard(s) | Designed according to EN14525 |
| Working temperature of rubber | -20°C to max. 70°C |
| Connection | Supa Maxi™ Coupling |
| Material | Ductile iron |

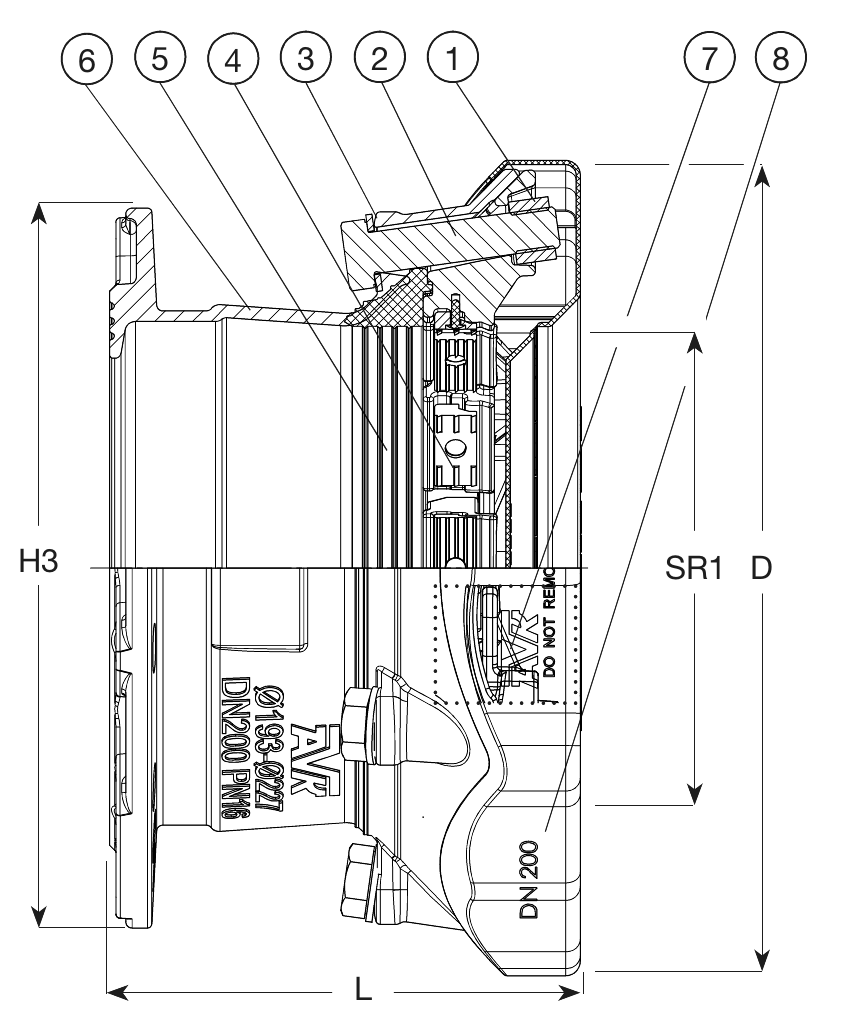

| D (mm) | 389 |
| DN (mm) | 200 |
| Flange (DN mm) | 200 |
| Flange (DN mm) | 200 |
| T (mm) | 193 - 227 |
| W (mm) | 389 |

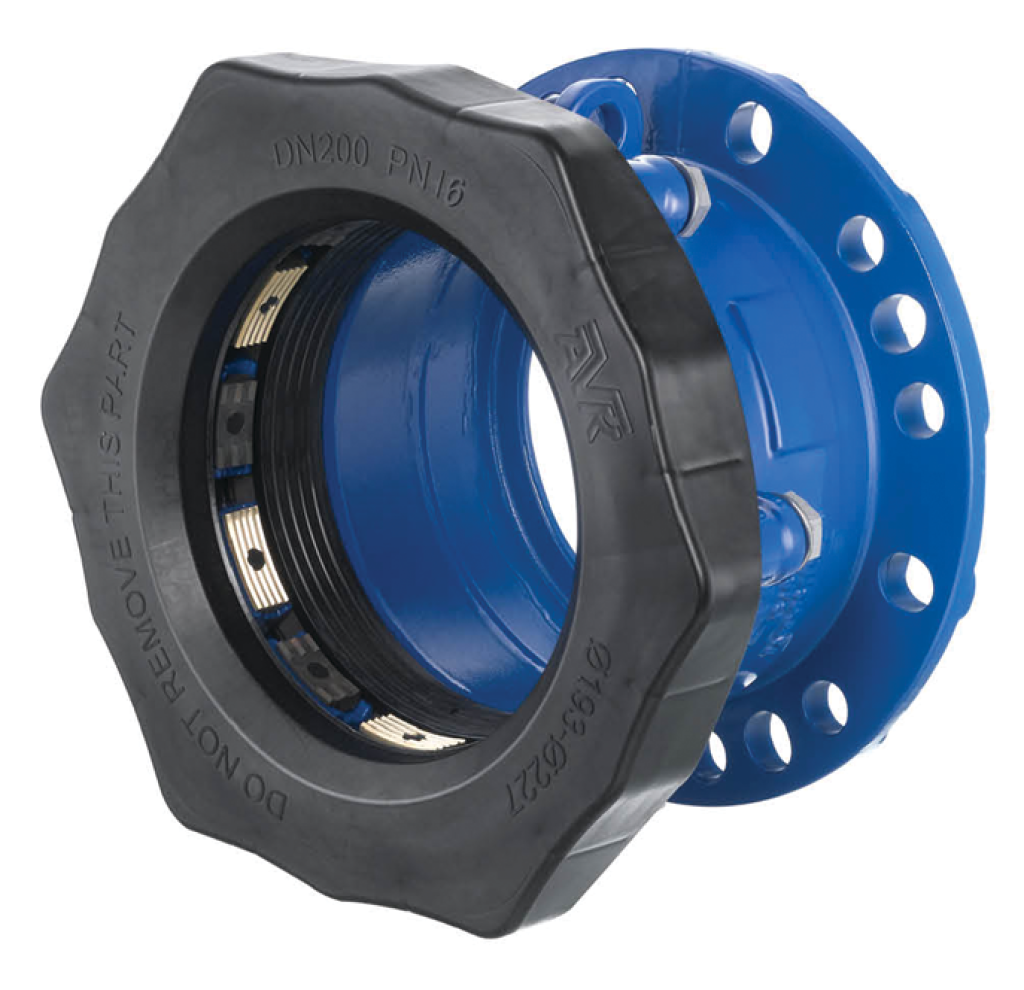

| Description | TENSILE FLANGE ADAPTER, 192/227-DN200 |
Attachments
SUPPORT BUSH, PE PIPES SDR17, PE110
Item No.
0511073000
SUPPORT BUSH, PE PIPES SDR17, PE160
Item No.
0516073000
FITTING, REDUCTION, LOOSE FLANGE, DN125-80
Item No.
712012722201
SUPPORT BUSH, PE PIPES SDR17, PE180
Item No.
0518073000
Price on Request
