Specifications
| DN (mm) | 300 |
| Flange (drilling) | PN16 |
| Max Operating Pressure | 16 Bar |
| Rubber type | EPDM rubber |
| Closing Direction | Clockwise to Close |
| Material | Ductile iron |
| Design Standard(s) | Designed according to EN1074 1-2 and EN1171 |
| Working temperature of rubber | Max. 70°C |
| Connection | Flanged |
| Material | Ductile iron |

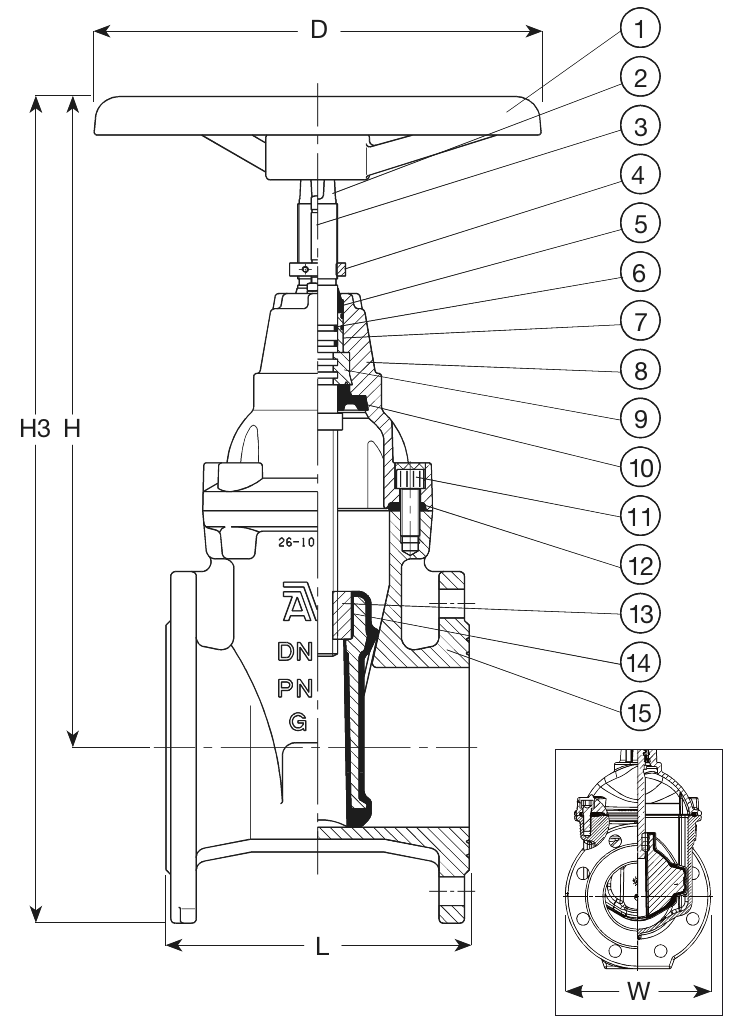

| D (mm) | 500 |
| W (mm) | 455 |

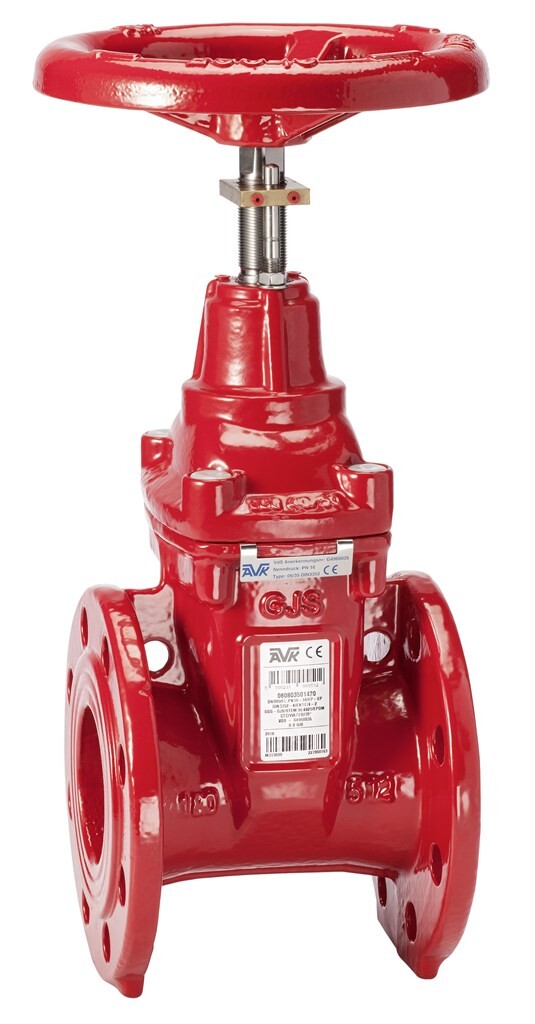

| Description | GATE VALVE, EPDM, F4, HW/PI, DN300 |
