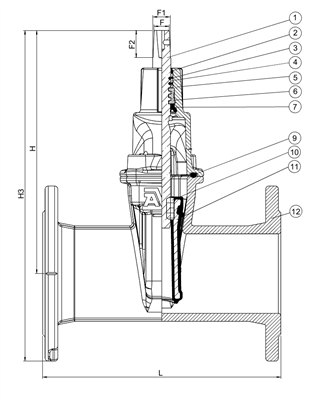

GATE VALVE, EPDM, FLANGED, F5, DN65
GATE VALVE, EPDM, FLANGED, F5, DN65
GATE VALVE, EPDM, FLANGED, F5, DN65
GATE VALVE, EPDM, FLANGED, F5, DN65
GATE VALVE, EPDM, FLANGED, F5, DN65
GATE VALVE, EPDM, FLANGED, F5, DN65

GATE VALVE, EPDM, FLANGED, F5, DN65

Item No. 0206560094648
Price on request
Specifications
DN (mm) 65
Flange (drilling) SPECIAL
Max Operating Pressure 16 Bar
Approval(s) Belgaqua approved material and approved according to DIN-DVGW Certificate NW-6202BN0109
Rubber type EPDM drinking water approved
Closing Direction Clockwise to Close
Material Ductile iron
Design Standard(s) Designed according to EN1074 1-2 and EN1171
Face-to-face Standard Face-to-face dimension according to EN 558 Table 2 Basic Series 14
Pressure Test(s) Seat: 1.1 x PN (in bar), Body: 1.5 x PN (in bar). Operation torque test.
Working temperature of rubber Max. 70°C
Connection Flanged
Material Ductile iron
W (mm) 185
Description GATE VALVE, EPDM, FLANGED, F5, DN65
Attachments
02-60-0035_AVK014_FRB
02-60-0035_AVK014_NLB
Approvisionnement en eau_brochure_2020_FR_LQ
AVK BE_Schuifafsluiters brochure
AVK BE_Vannes a opercule
La-vanne-est-le-coeur_(BE-FR)_2020-LQ
MI_schuifafsluiters_water_afvalwater_2022
MI_vanne_opercule_eau_assainissement_2022
SchuifishetHart_(BE-NL)_2020-LQ
Watervoorziening_brochure_2020-LQ
