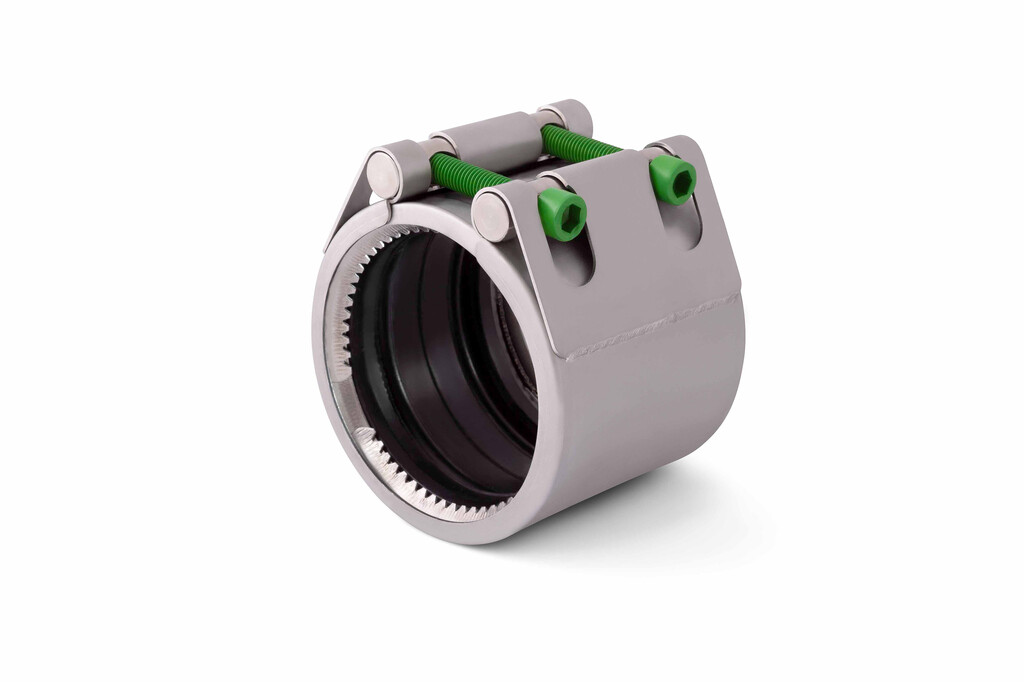

Repico-G_214,5-218,3_316/N/2S1

Repico-G_214,5-218,3_316/N/2S1

Repico-G_214,5-218,3_316/N/2S1

Repico-G_214,5-218,3_316/N/2S1

Repico-G_214,5-218,3_316/N/2S1

Item No. 74501021611201

Compare product

Specifications
Attachments

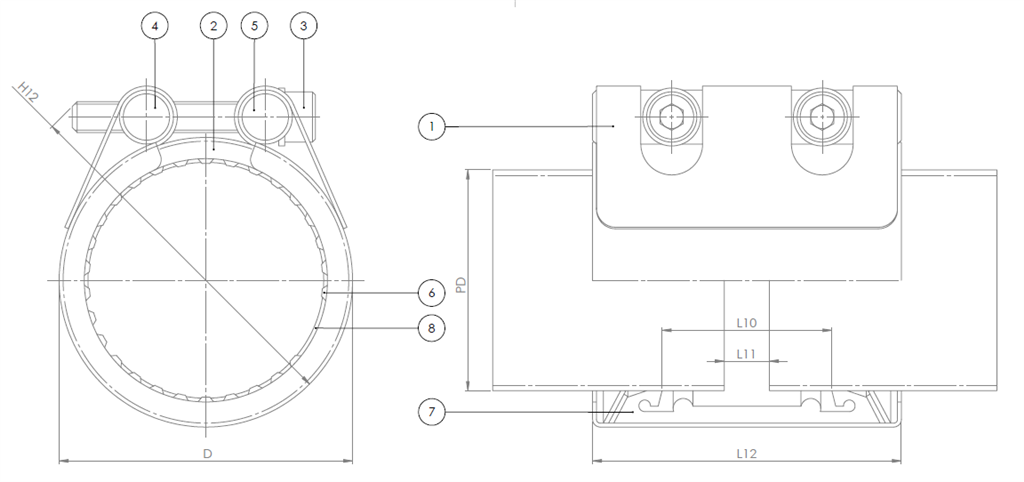

Specifications

DN (mm)	200
Rubber type	NBR rubber
Material	Stainless steel
Material	Stainless steel
Bolt Size (Metric)	2XM14X100
D (mm)	242
H12 (mm)	281
L10 (mm)	89
L11 (mm)	15
L12 (mm)	150
Pipe diam. (mm)	216,3
Tolerance (mm)	214,5 - 218,0
Tolerance (mm)	214,5 - 218,0
Torque (Nm)	70
Work press. (bar)	21.3
Description	Repico-G_214,5-218,3_316/N/2S1

Attachments

745-01-112_AVK014_FRB
745-01-112_AVK014_NLB
