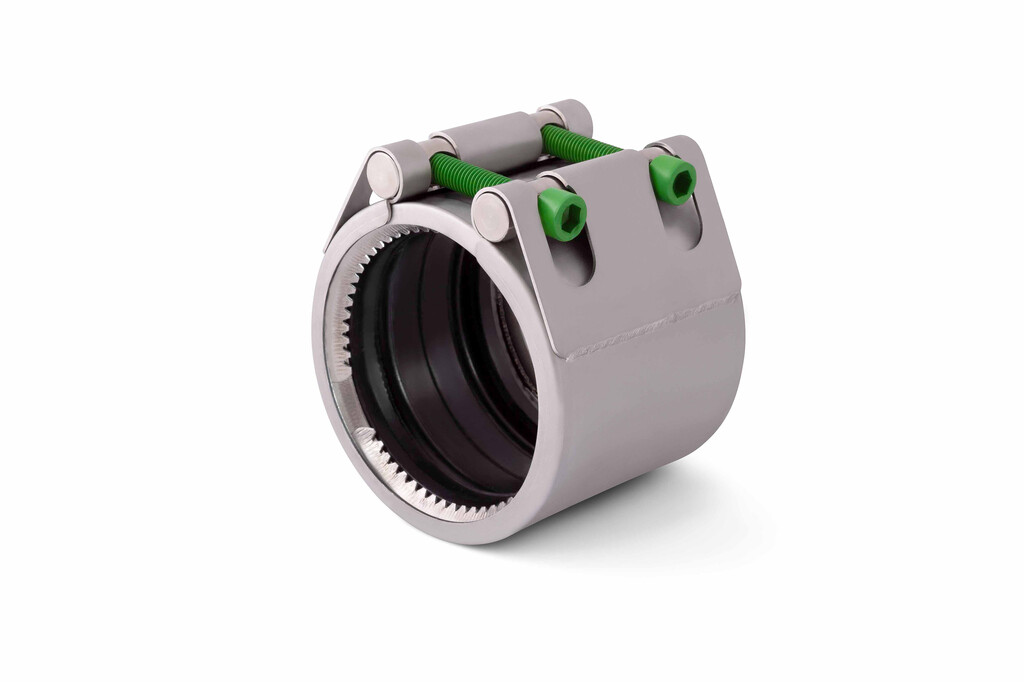

Repico-G_87,8-91,0_316/E/2S1

Repico-G_87,8-91,0_316/E/2S1

Repico-G_87,8-91,0_316/E/2S1

Repico-G_87,8-91,0_316/E/2S1

Repico-G_87,8-91,0_316/E/2S1

Item No. 74501008911101

Compare product

Specifications
Attachments

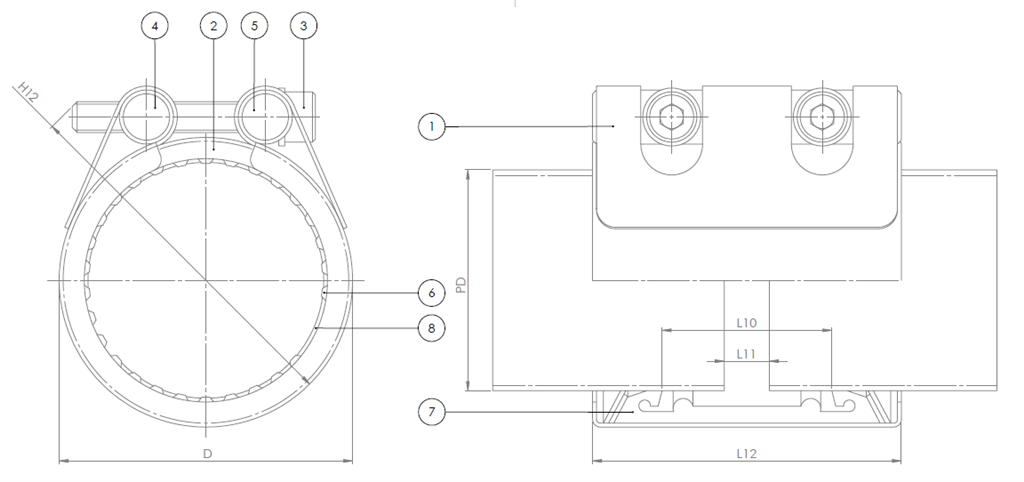

Specifications

DN (mm)	80
Rubber type	EPDM drinking water approved
Material	Stainless steel
Material	Stainless steel
Bolt Size (Metric)	2XM12X70
D (mm)	109
H12 (mm)	137
L10 (mm)	59
L11 (mm)	15
L12 (mm)	110
Pipe diam. (mm)	88,9
Tolerance (mm)	87,8 - 91,0
Tolerance (mm)	87,8 - 91,0
Torque (Nm)	35
Work press. (bar)	37.3
Description	Repico-G_87,8-91,0_316/E/2S1

Attachments

745-01-111_AVK014_FRB
745-01-111_AVK014_NLB
Approvisionnement en eau_brochure_2020_FR_LQ
MI_745
Watervoorziening_brochure_2020-LQ
