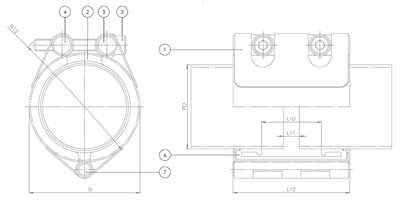

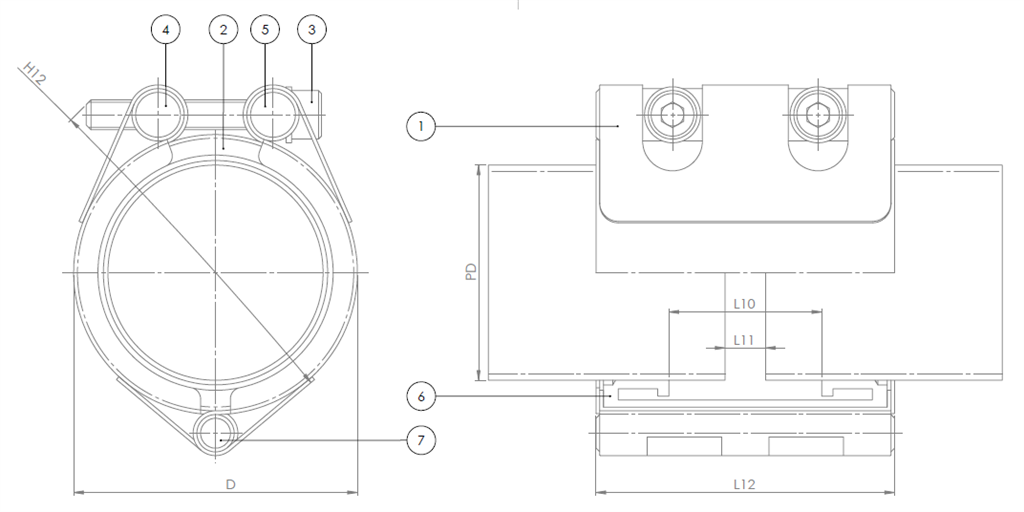

Specifications
| DN (mm) | 32 |
| Rubber type | EPDM drinking water approved |
| Material | Stainless steel |
| Material | Stainless steel |
| Bolt Size (Metric) | 2XM8X55 |
| D (mm) | 51 |
| H12 (mm) | 75 |
| L10 (mm) | 28 |
| L11 (mm) | 8 |
| L12 (mm) | 60 |
| Pipe diam. (mm) | 38,0 |
| Tolerance (mm) | 37,0 - 39,0 |
| Tolerance (mm) | 37,0 - 39,0 |
| Torque (Nm) | 7 |
| Work press. (bar) | 42 |

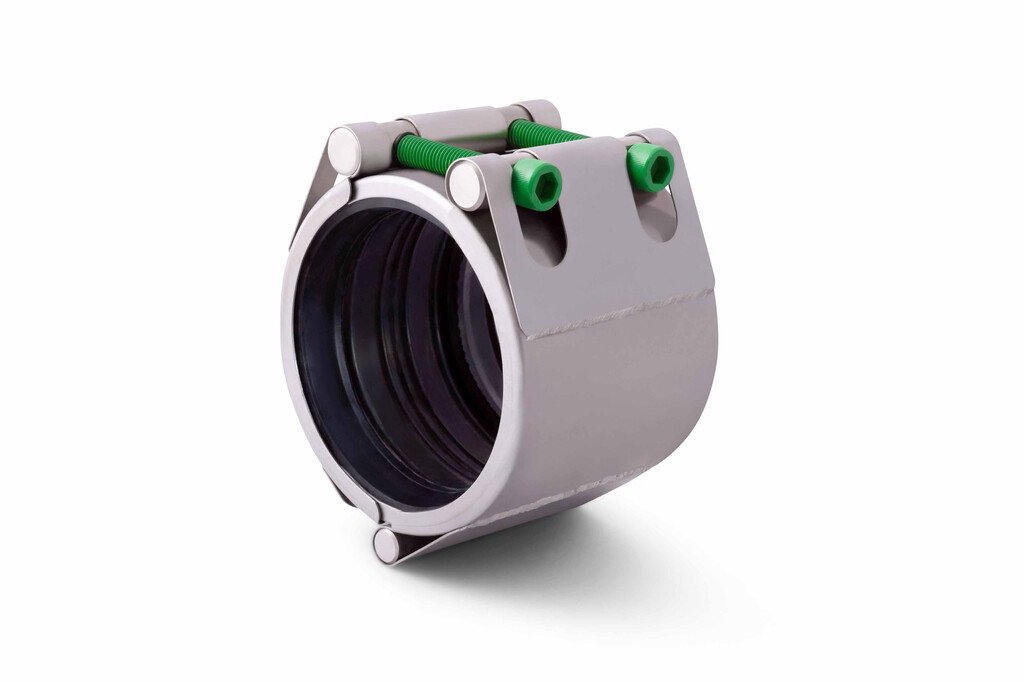

| Description | Repico-RH_37,0-39,0_316/E |
