Specifications

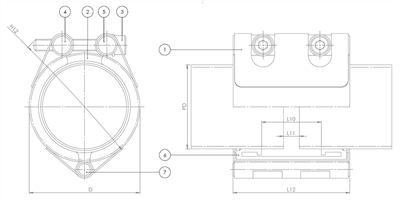

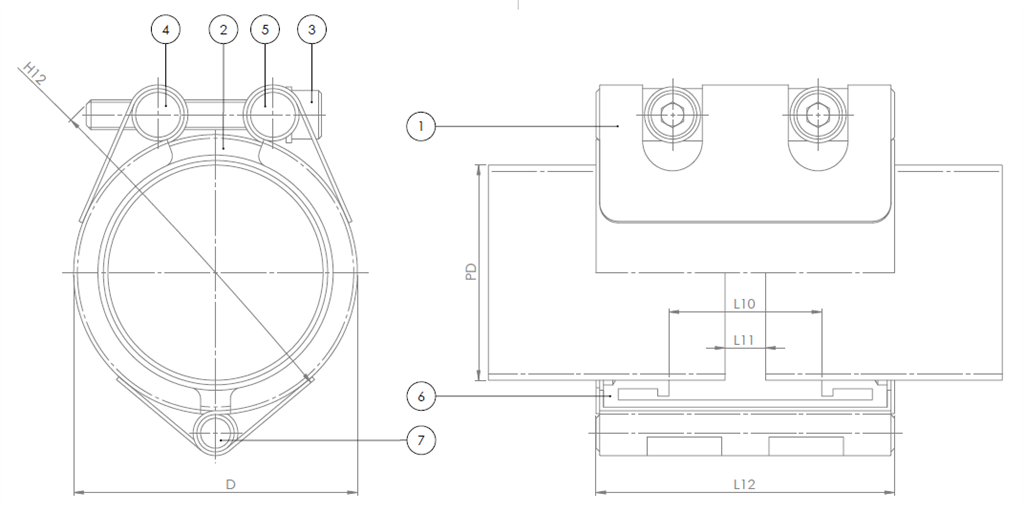

| DN (mm) | 65 |
| Rubber type | EPDM drinking water approved |
| Material | Stainless steel |
| Material | Stainless steel |
| Bolt Size (Metric) | 2XM8X65 |
| D (mm) | 85 |
| H12 (mm) | 112 |
| L10 (mm) | 44 |
| L11 (mm) | 8 |
| L12 (mm) | 80 |
| Pipe diam. (mm) | 69,0 |
| Tolerance (mm) | 68,5 - 71,0 |
| Tolerance (mm) | 68,5 - 71,0 |
| Torque (Nm) | 12 |
| Work press. (bar) | 37 |

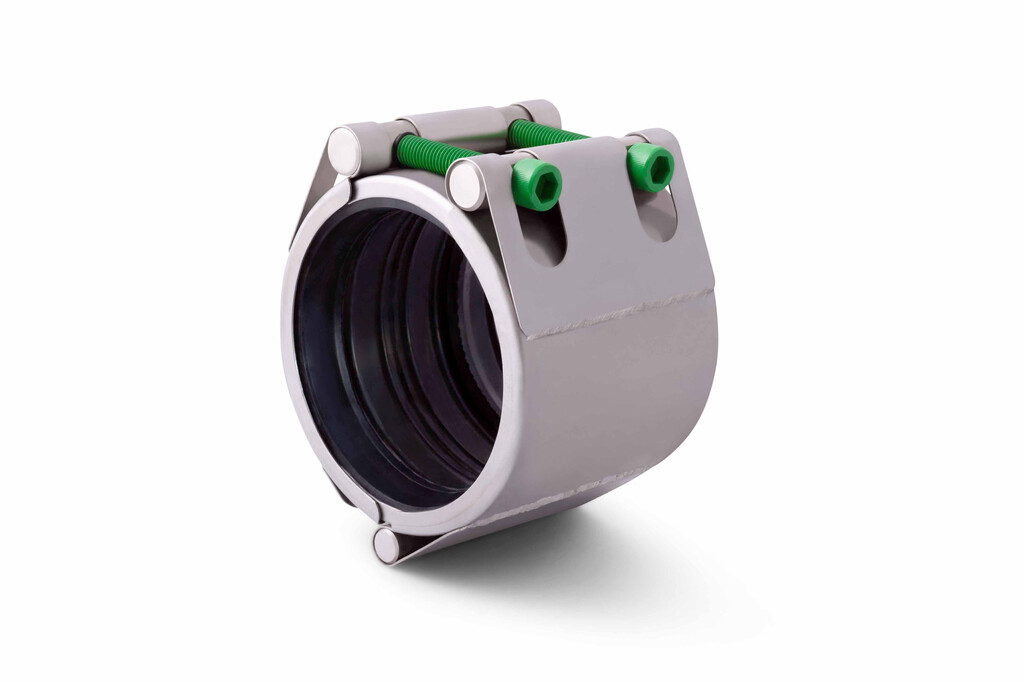

| Description | Repico-RH_68,5-71,0_316/E |
