Specifications
| DN (mm) | 65 |
| Rubber type | EPDM drinking water approved |
| Material | Stainless steel |
| Material | Stainless steel |
| Bolt Size (Metric) | 2XM8X65 |

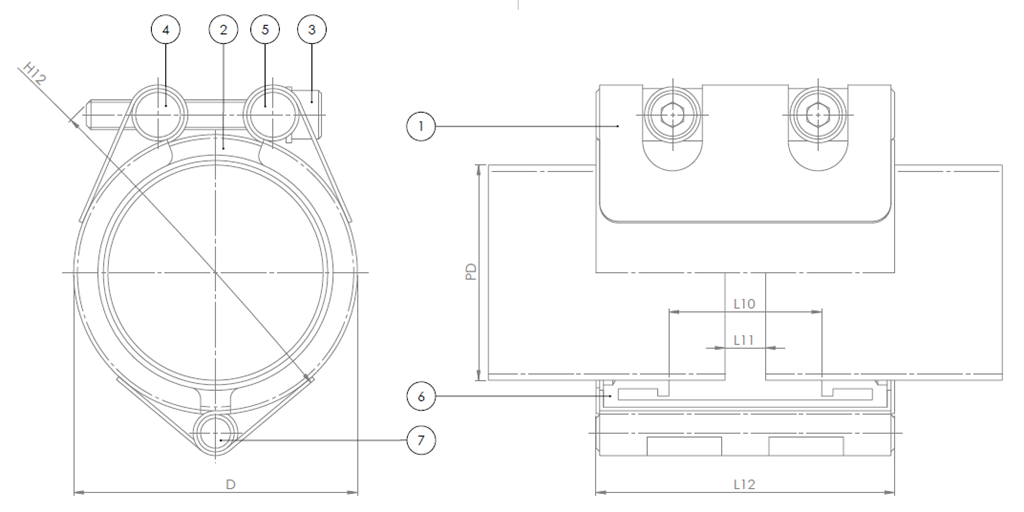

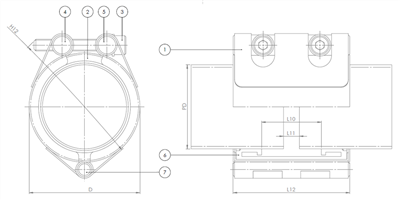

| D (mm) | 89 |
| H12 (mm) | 116 |
| L10 (mm) | 44 |
| L11 (mm) | 8 |
| L12 (mm) | 80 |
| Pipe diam. (mm) | 73,0 |
| Tolerance (mm) | 72,5 - 75,5 |
| Tolerance (mm) | 72,5 - 75,5 |
| Torque (Nm) | 12 |
| Work press. (bar) | 37 |

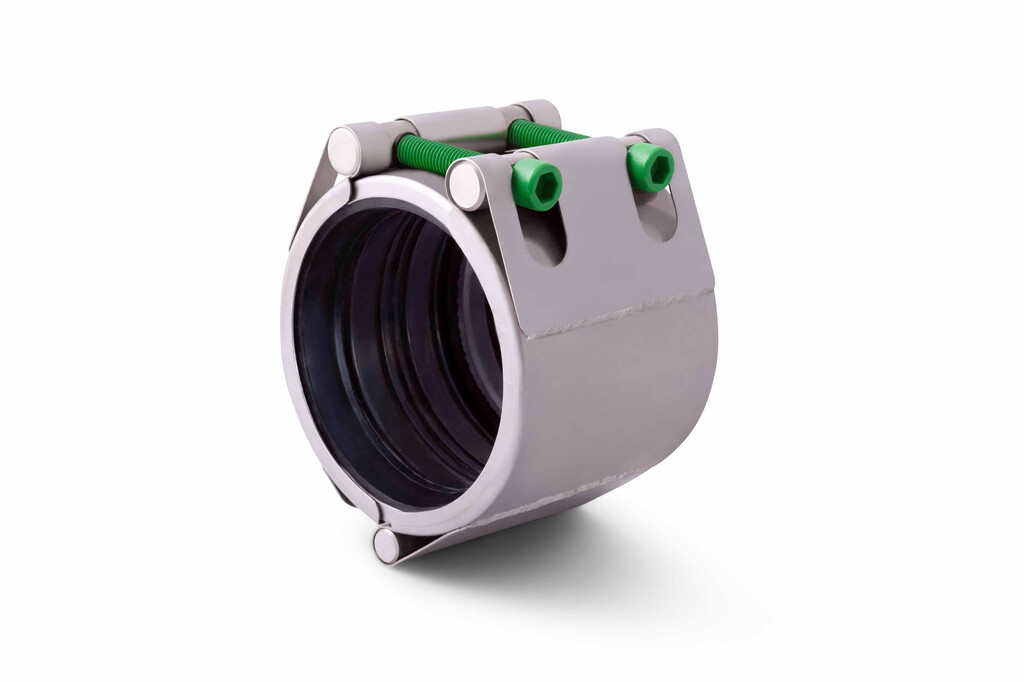

| Description | REPICO-RH_72,5-75,5_316/E |
