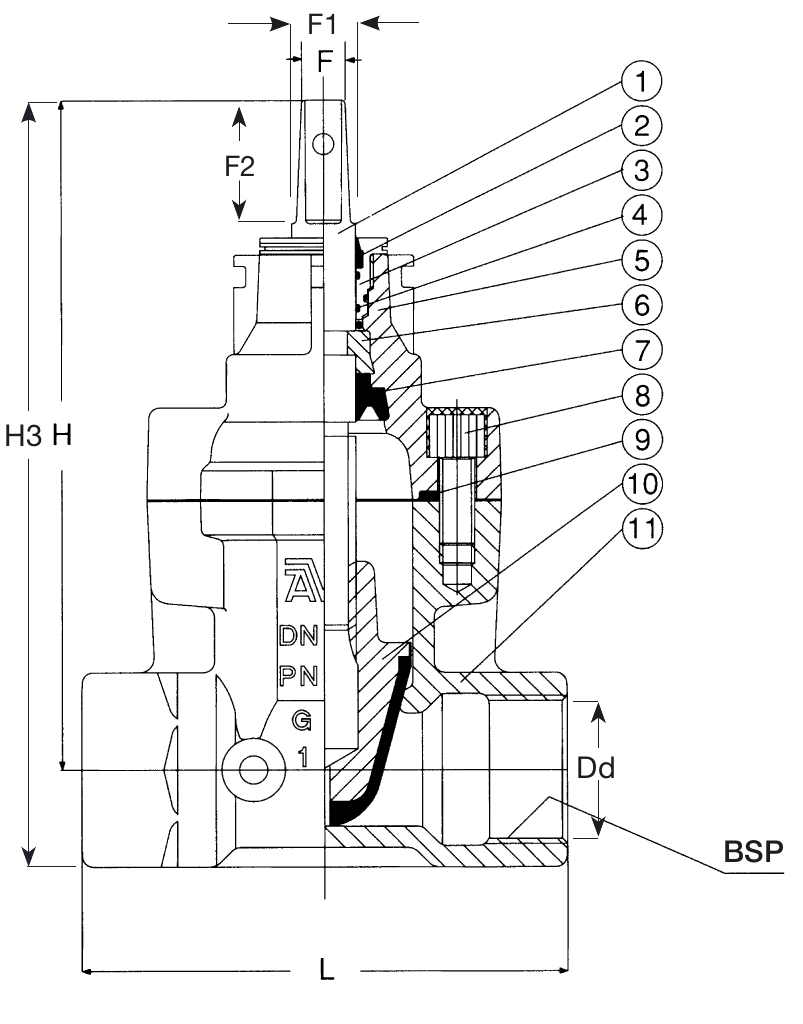

SERV. CON VA., NBR-GAS, BSP 3/2" F

Item No. 030502500237

Compare product

Specifications

DN (mm)	40
Approval(s)	Approved according to DIN-DVGW Certificate NG-4313BQ0203
Rubber type	NBR rubber
Closing Direction	Clockwise to Close
Material	Ductile iron
Design Standard(s)	Designed according to EN13774
Pressure Test(s)	Seat: 1.1 X PN and 0.5 with air (in bar). Body: 1.5 X PN with water, 1.1 X PN and 0.5 with air (in bar)
Working temperature of rubber	-20 °C to max. 60°C
Connection	Internal Thread
Material	Ductile iron
Thread (internal)	1 1/2"
Dd (mm)	50
Description	SERV. CON VA., NBR-GAS, BSP 3/2" F
