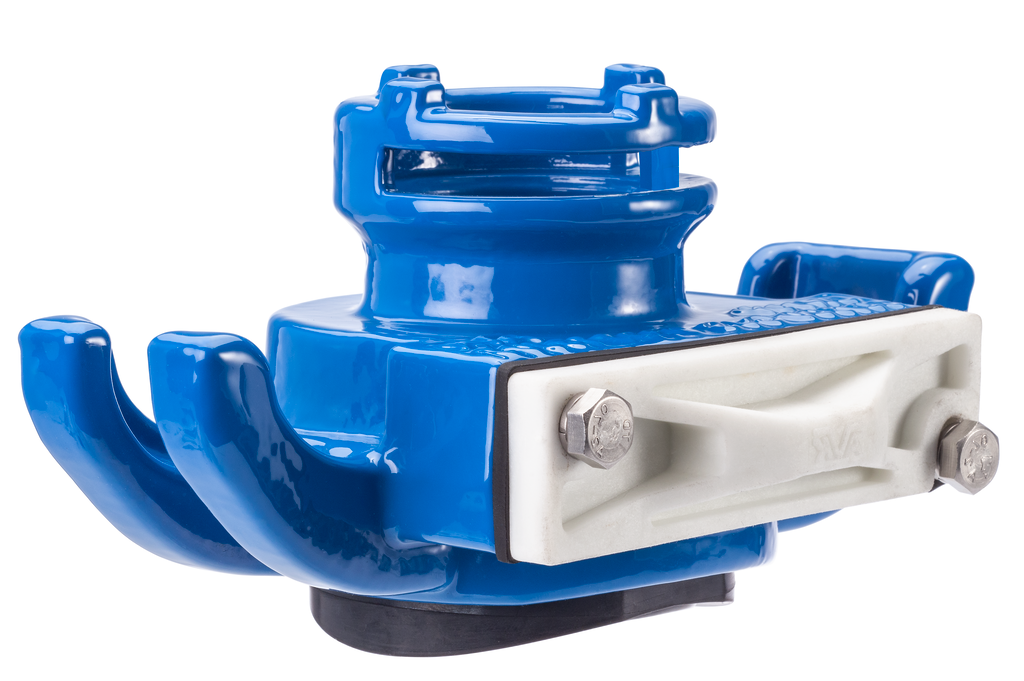

TAP. SADDLE SUPA LOCK, EPDM, UNI., DN50-100
TAP. SADDLE SUPA LOCK, EPDM, UNI., DN50-100
TAP. SADDLE SUPA LOCK, EPDM, UNI., DN50-100
TAP. SADDLE SUPA LOCK, EPDM, UNI., DN50-100
TAP. SADDLE SUPA LOCK, EPDM, UNI., DN50-100
TAP. SADDLE SUPA LOCK, EPDM, UNI., DN50-100

TAP. SADDLE SUPA LOCK, EPDM, UNI., DN50-100

Item No. 10004084320464
Price on request
Specifications
DN (mm) 32
Max Operating Pressure 16 Bar
Approval(s) Belgaqua approved material
Rubber type EPDM drinking water approved
Material Ductile iron
Working temperature of rubber Max. 70°C
Connection Supa Lock™
Material Ductile iron
Dd (mm) Ø32
DN/DN 50 - 80
T (mm) 50-88
Tolerance (mm) 50-88
Tolerance (mm) 50-88
W (mm) 115
Description TAP. SADDLE SUPA LOCK, EPDM, UNI., DN50-100
